Introduction

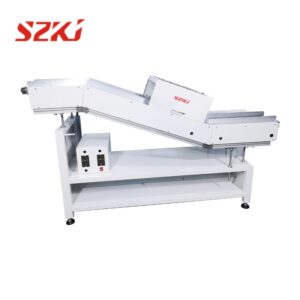

The DIP-350-SZ Three-Stage Plate Dispenser is an innovative SMT PCB unloader designed to optimize the unloading process in PCB assembly lines. Equipped with Mitsubishi PLC program control, this dispenser ensures precision, reliability, and adaptability, making it a valuable asset for modern manufacturing setups. Its robust construction and user-friendly features enhance efficiency by minimizing downtime and ensuring seamless transitions between production stages.
Product Peculiarity
The DIP-350-SZ PCB unloader offers several standout features that make it indispensable:
- Precision and Durability: It is built with laser-cut guiding edges and a robust 35B-S carbon steel chain coated with non-slip rubber, ensuring smooth and secure PCB handling.
- Adjustable Conveyor Settings: The hand-crank adjustable conveyor width accommodates various PCB sizes, providing versatility for different production needs.
- Stability and Safety: Its heavy-bottom design prevents unwanted movement, while the anti-static conveyor materials protect PCBs from damage during transfer.
- Customizable Design: This product supports adjustable conveyor speed, flow direction, and transfer height, allowing it to adapt to diverse assembly line configurations.
- SMEMA Compatibility: The DIP-350-SZ integrates seamlessly with other SMEMA-compliant equipment, enhancing the overall efficiency of production processes.
Functionality
As a high-performance PCB unloader, the DIP-350-SZ delivers:
- Seamless Unloading: Transfers PCBs from wave soldering machines in a continuous queue, maintaining steady workflow efficiency.
- Cooling Integration: Optional cooling fans help to cool PCBs post-soldering, preserving component integrity.
- Precise Transfer: Multi-point guiding systems ensure accurate PCB alignment, preventing errors and reducing manual adjustments.
- Adaptability: Its design supports manual and automated processes, fitting seamlessly into diverse production environments.
How to Use
- Position the DIP-350-SZ adjacent to the wave soldering machine for easy integration.
- Use the hand crank to adjust the conveyor width and transfer height based on PCB dimensions.
- Configure the conveyor speed and flow direction to match the production line requirements.
- Activate the machine and monitor its operation using the intuitive interface.
- Fine-tune cooling and transfer settings as necessary for optimal performance.
FAQs
- What PCB sizes can the DIP-350-SZ handle?
It supports PCBs up to 400mm in length and 350mm in width, with adjustable conveyor settings. - Is SMEMA compatibility included?
The product is fully SMEMA-compliant, ensuring smooth integration with other equipment. - Does it include a cooling system?
Cooling fans are optional but recommended for maintaining product quality. - What ensures stability during operation?
The heavy-bottom design and non-slip conveyor chain provide excellent stability. - Can the flow direction be customized?
Yes, the flow direction is fully adjustable to meet left-to-right or right-to-left operational needs.
In conclusion, the DIP-350-SZ Three-Stage Plate Dispenser is the ideal PCB unloader for any high-performance SMT assembly line. Its precision, durability, and adaptability ensure a seamless and efficient pro
For more information or to request a quote, contact us at +86 13928449229 and discover how SZKJ’s PCB unloaders.
