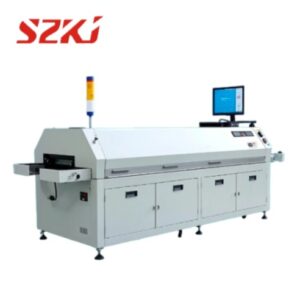

In Surface Mount Technology (SMT) assembly, achieving high-quality soldering depends on precise temperature control. The reflow zone plays a crucial role in the reflow soldering process, ensuring that solder paste melts, components bond securely, and defects are minimized. A reflow soldering oven consists of four distinct temperature zones: the preheat zone, soak zone, reflow zone, and cooling zone. Each zone has specific functions and temperature requirements that contribute to the overall quality and reliability of the solder joints.
The Four Temperature Zones in a Reflow Soldering Oven
1. Preheat Zone
The preheat zone is the first stage of the reflow zone, where the PCB and its components are gradually heated. The primary purpose of this zone is to activate the solder paste, enabling it to start softening and moving while achieving thermal balance across the entire board.
As the temperature rises, the flux within the solder paste begins to volatilize, helping remove oxides and preparing the surface for a strong bond. The heating rate in this zone must be carefully controlled—typically around 1-3°C per second—to prevent thermal shock, which can damage sensitive components. If the preheat rate is too fast, components may crack or experience stress-related failures. On the other hand, if heating is too slow, it may lead to incomplete flux activation, affecting the overall soldering quality.
2. Soak Zone
Also known as the thermal soak or heat absorption zone, this stage plays a critical role in stabilizing the temperature across all components on the PCB. Since components vary in size and thermal mass, smaller components heat up quickly while larger ones take longer. The soak zone ensures thermal equilibrium, reducing temperature variations across the board.
Additionally, this zone allows the flux to fully activate and continue removing oxides, improving the wetting process when solder melts. The soak temperature typically ranges between 140°C and 180°C, and the duration usually lasts 60-90 seconds to ensure uniform heat distribution. Proper soak zone management helps reduce soldering defects such as voids and poor solder wetting, which can lead to unreliable connections.
3. Reflow Zone
The reflow zone is the hottest and most critical phase in the soldering process. Here, the temperature reaches its peak, melting the solder paste and forming permanent solder joints. The metal particles in the solder paste, primarily tin, fully liquefy, allowing the molten solder to flow and create strong electrical and mechanical connections.
The peak temperature in this zone typically ranges between 220°C and 250°C, depending on the type of solder alloy used (lead-free or leaded). The duration the PCB remains at this peak temperature—known as time above liquidus (TAL)—should be carefully controlled, typically around 30-90 seconds. If the exposure is too short, the solder may not fully melt, resulting in weak joints. However, if the PCB stays in the high-temperature zone for too long, excessive heat can damage components or cause board warping.
4. Cooling Zone
The cooling zone is the final stage of the reflow zone, where the temperature rapidly drops to solidify the solder joints. Proper cooling is essential for preventing defects such as solder grain growth, which can weaken the joints over time.
A rapid cooling rate, typically around 4°C per second, helps produce fine-grain solder structures, enhancing mechanical strength and reliability. If the cooling process is too slow, solder joints may become brittle due to oxidation or moisture absorption. On the other hand, an excessively fast cooling rate can introduce stress cracks in the solder joints or cause warping of the PCB. Therefore, achieving an optimal cooling balance is crucial to ensuring durable and defect-free solder connections.
Why Proper Reflow Zone Control Matters
Each stage of the reflow zone plays a crucial role in the overall soldering quality. Proper temperature profiling is essential to:
- Prevent Thermal Shock: Gradual heating reduces the risk of component cracking or damage.
- Ensure Strong Solder Joints: Optimal soak and reflow temperatures allow solder to bond correctly.
- Reduce Defects: Controlling the cooling rate minimizes oxidation, voids, and grain growth issues.
By carefully managing the preheat, soak, reflow, and cooling zones, manufacturers can enhance the reliability of electronic assemblies, reducing failure rates and improving production efficiency.
