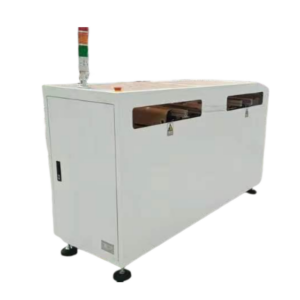

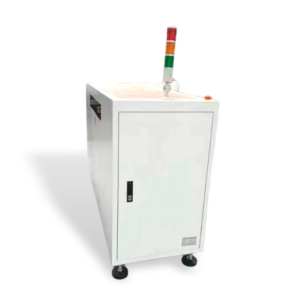

TM-300W-SZ PCB Shuttle Conveyor Machine is controlled by PLC and operated by a true color touch screen. It has multiple sound and light alarms, anti-jam, and other functions, and is suitable for various conveying modes and SMT equipment. It can accurately level printed circuit boards, improve production line efficiency, and solve the inefficiency and inaccuracy of traditional manual leveling.
Key Features and Peculiarities of the TM-300W-SZ PCB Shuttle Conveyor Machine
The PCB shuttle conveyor system Offers a variety of features that make it a standout product in the PCB handling sector:
- PLC Control System: The machine is equipped with a microcomputer (PLC) control system, ensuring stable, reliable, and consistent performance.
- Accurate Alignment: Featuring a stepper motor for translation motion, this unit ensures precise alignment of PCBs, reducing errors and improving accuracy in the production line.
- Buffering Design: A buffering system helps slow down the transfer process, providing smoother transitions and contributing to greater stability and precision.
- Adjustable Width: The machine’s width is adjustable to accommodate different PCB sizes, offering flexibility in handling various production requirements.
- Safety Features: The TM-300W-SZ is enclosed in a protective case for safety, ensuring that operators are protected from potential hazards during operation.
- SMEMA Compatibility: The unit comes with a standard SMEMA interface, allowing it to integrate seamlessly with other devices on the production line.
These features work together to make the TM-300W-SZ PCB Shuttle Conveyor an efficient and reliable solution for PCB handling.
Functionality of the TM-300W-SZ PCB Shuttle Conveyor Machine
The TM-300W-SZ PCB shuttle conveyor system is designed to improve the efficiency and precision of PCB handling in production lines. Here’s what it can do:
- Merge and Separate PCBs: It can effectively merge or separate PCBs as required, making it flexible for different production line processes.
- Direction Flexibility: The machine can operate in both left-to-right and right-to-left directions, depending on the layout of your production line.
- Increase Production Efficiency: By automating the alignment and transfer process, the TM-300W-SZ reduces manual labor, increases speed, and minimizes operational errors.
- SMEMA Integration: The standard SMEMA interface allows the TM-300W-SZ PCB Shuttle Conveyor to be connected to other machines and equipment in the production line for seamless operation.
Equipment Configuration:
- The transfer motor is a “research-controlled” stepper motor with a stepper drive
- Translation motion transfer motor adopts “research control” stepper motor with stepper driver
- Taiwan “TBI” adjustable screw
- Japanese “Omron” photoelectric sensor
- Japan “Panasonic” PLC
- “Wilenton” true color touchscreen panel control
- Mobile cable adopts imported German “IGgs” cable,
- American “Martin” drive wheel
- Front and rear standard SMEMA interfaces
| Equipment brand | SZKJ |
| Equipment type | TM-300W-SZ automatic leveling machine |
| Transmission direction | Left-to-right, right-to-left, customizable |
| Transfer height | 900±20mm |
| Maximum PCB board size | (L)330*(W)50-250mm |
| PCB thickness | PCB thickness 0.5-4mm |
| Total size of equipment (L*W*H) | 500*1200*1100mm（L*W*H） |
How to Use the TM-300W-SZ PCB Shuttle Conveyor Machine
Using the TM-300W-SZ PCB shuttle conveyor system is simple, thanks to its user-friendly interface:
- Set Up: Connect the machine to your production line using the SMEMA interface.
- Adjust Settings: Use the touch screen to adjust the machine’s width and select the operational direction (left-to-right or right-to-left).
- Operation: Load the PCBs and let the PLC-controlled system take care of automatic alignment and transfer.
- Monitoring: Use the touch screen to monitor the process and make adjustments if necessary.
Frequently Asked Questions (FAQs)
- What is the main purpose of TM-300W-SZ?
The TM-300W-SZ PCB Shuttle Conveyor System is designed to merge, separate, and align PCBs with precision and efficiency. - Is TM-300W-SZ compatible with other devices?
Yes, the system features SMEMA compatibility, ensuring seamless integration with other production line equipment. - How does TM-300W-SZ work?
It uses a PLC-controlled system to automate PCB alignment and transfer, reducing manual labor and improving accuracy. - Does the TM-300W-SZ support multiple PCB thicknesses?
Yes, the system can handle various PCB thicknesses, adding to its flexibility and adaptability for different projects.
The PCB shuttle conveyor system Is an essential tool for enhancing productivity and accuracy in PCB production lines. With its advanced features and flexible functionality, it improves efficiency while ensuring high-quality results.
