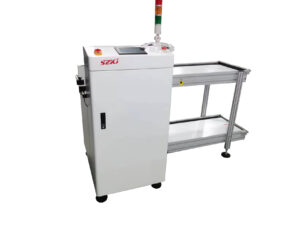

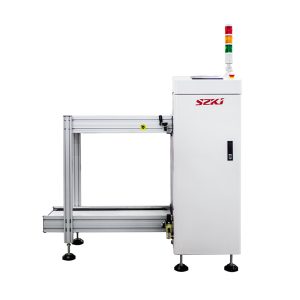

LD-250M-SZ the PCB automatic loader designed for the SMT production line adopts a special metal structure and integrally cast lifting platform to ensure equipment stability and high efficiency. It is equipped with a PLC control system and color touchscreen operation interface, which is easy to operate. It has a cylinder push plate structure with adjustable push speed and thrust to improve loading efficiency. There is also an auxiliary positioning brake system to ensure accurate positioning and fast lifting to ensure the smooth operation of the production line.
The LD-250M-SZ PCB automatic feeding machine is a crucial tool for any modern PCB assembly line, designed to streamline operations and boost productivity.
The LD-250M-SZ PCB Automatic Feeding Machine is Durability
Built to withstand continuous operation, even in the most demanding environments, this machine is equipped with a sturdy frame and high-quality components. Whether you’re running high-volume production or dealing with various batches throughout the day, the LD-250M-SZ is engineered to keep up. The robust construction guarantees reliability, allowing it to perform consistently under challenging conditions. Simple controls make it easy for operators to understand and use, which helps ensure seamless integration into existing production lines. The machine is all about convenience—it offers a hassle-free, dependable solution that keeps everything moving efficiently.
Product characteristics
A.mount loading device on circuit board of production line
b. Special sheet metal structure, better understand the MAGAZINE operation status.
c. The solid structure design of the integrated casting lifting platform improves the stability of the equipment
D.pl control, color human-machine interface operation
e. Adopts cylinder pushing plate structure, pushing plate strength and speed can be adjusted
f. Auxiliary positioning brake system, accurate positioning, fast lifting speed, high production efficiency
g. Independent intellectual property rights control system, multi-functional electrical circuit and programming, stable performance, to ensure smooth production line, safe and reliable
h. Audible and visual warning system, abnormal information text prompt, easy to operate and maintain
j. Standard SMEMA signal communication mode
The LD-250M-SZ SMT Automatic Feeding Machine is Versatility
It is compatible with different magazine sizes, making it ideal for manufacturers who need flexibility in their production lines. Whether you’re dealing with small, delicate PCBs or larger, more complex designs, this machine can handle it. The built-in sensors continuously monitor the loading process to ensure each PCB is correctly aligned and positioned before moving to the next stage. This level of precision greatly reduces the risk of errors, minimizes potential damage during transfer, and ultimately contributes to a higher-quality output. Manufacturers can rest easy knowing that the machine is designed to handle their boards with care, leading to fewer rejected units.
| Equipment brand | SZKJ |
| Equipment type | LD-250M-SZ automatic loading machine |
| Transmission direction | Left-to-right, right-to-left, customizable |
| Transfer height | 900±20mm |
| Maximum PCB board size | (L) 330* (W) 50-250mm |
| PCB thickness | PCB thickness 0.5-4mm |
| Tank size | 335*320*56 5mm (L * W * H) |
| The number at the top of the food box | Quantity of PCB top board 50PCS per rack |
| Total size of equipment (L*W*H) | 1330*765*1250mm (L * W * H) |
| Delivery time | 6-25 seconds adjustable |
| Lifting step | 10-20-30-40mm Optional |
| Power supply specification | Ac 220V, 50Hz, 100W |
| Alarm function | The sound and light alarm has three color lights to distinguish the current working state and the sound and light alarm functions when the operation is interrupted |
| Equipment weight | 190 kg |
Adjustability of the LD-250M-SZ PCB Automatic Feeding Machine
The machine’s settings can easily be modified to match specific production needs, regardless of batch size or complexity. This makes it a great choice for manufacturers who need to switch between different production requirements quickly. The conveyor system is designed for gentle handling, ensuring that PCBs are transferred smoothly without any risk of physical damage. Keeping boards intact not only reduces downtime but also minimizes waste, helping manufacturers save costs while maintaining high output quality.
Boosting Efficiency and Precision with LD-250M-SZ
Using the LD-250M-SZ PCB automatic feeding machine brings numerous benefits to the SMT production process. By automating the PCB loading process, it helps manufacturers reduce their dependency on manual labor, effectively cutting down on labor costs. Moreover, it minimizes the chances of human error, ensuring that each PCB is handled precisely throughout the process. The solid, well-built design ensures the machine’s consistent performance, while advanced features provide precise control over each step of the handling process.
Summary
With the LD-250M-SZ, you can maintain a steady flow of PCBs, ensuring your production line keeps running smoothly. Less downtime, fewer errors, and a more efficient production process all translate to greater overall productivity. The machine’s compatibility with different magazine sizes, along with its user-friendly interface, makes it an excellent investment for manufacturers who want to enhance their production capabilities. It’s all about making the production line more reliable and efficient—keeping things running like clockwork. The LD-250M-SZ SMT automatic feeding machine is the solution you need to take your SMT production line to the next level—efficient, dependable, and built to perform.
