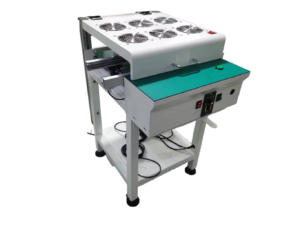

- This unit links between SMT machines and cooling down PCB from the reflow oven in the SMT line.
- This Cooling conveyor for PCB can be installed with touch-screen-controlled cooling fans on top or bottom. The cooling time length can be set on the touch-screen software.
- This cooling conveyor is also available to be customized for different customer requirements.

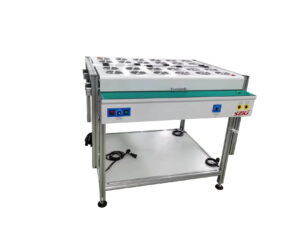

SZKJ Cooling Conveyor for PCB Production
The SZKJ 1000mm cooling conveyor is an ideal solution for maintaining efficiency in PCB production lines. This conveyor has been specifically designed to link between SMT machines. It helps cool down PCBs after they exit the reflow oven, thereby ensuring that they are ready for the next stage of the production process. Our cooling conveyor also helps prevent thermal shock by gradually reducing the temperature, which reduces the risk of cracks or other structural issues in PCB boards.
Our cooling conveyor also has a Panasonic PLC program control system for precise and easy operations. It also comes with different modes, including a by-pass mode as well as an inspection mode. These modes allow the users to adjust the conveyor’s functions as per their production requirements. The width of the conveyor can be easily adjusted with a hand crank. Moreover, with the help of an optional software upgrade, you can get the option of automatic width adjustment as well. Moreover, we use the highest quality cooling fans for mounting on the top cover to ensure efficient heat dissipation. To make it even better, all of this can be easily managed using an optional touchscreen interface.
The heavy-bottom design of the cooling conveyor prevents shifting to improve stability during operations. The stepper motor-driven conveyor belt runs smoothly and comes with an adjustable belt speed allowing the users to precisely control the cooling time for each PCB assembly. Moreover, the PCB flow direction can also be set according to specific requirements, making the SZKJ cooling conveyor highly adaptable in different production environemtns.
The advanced cooling system in our conveyor provides uniform cooling across the entire length of the 1000mm conveyor. This consistent airflow is vital for achieving an even cooling effect, especially for delicate or high-density PCBs that often require careful handling. The cooling time can also be set via a timer to match the specific needs of different products.
| Transfer heights | 900mm+/-50mm |
| Transfer direction | Left to right |
| Operation side | Front of machine |
| Fixed rail | Front of machine |
| Interface | SMEMA |
| PCB working cycle | 3s-7s ( adjustable) |
| Conveyor belts | ESD flat belt |
| PCB edge support | 3mm |
| PCB thickness | 0.6mm-3.5mm |
| PCB stack heights | 240mm / specify |
| Safety | CE certificates |
| Control | PLC |
| Voltage | 220V/ 110V , single phase, 50-60Hz |
| Optional | |
| • Motorized adjustment
• Automatic adjustment by RS-485 |
|
Specifications
| Model | NC-BC-330 NC-BC-460 |
| Machine dimension | Length (mm) *666mm *900mm ( L*W*H)
Length is available for 500mm,600mm,800mm,1000mm,1500mm,2000mm |
| Weight | 80KG ( depends on different length of conveyor) |
| PCB size | 500mm *330mm ( L*W) 500mm *460mm ( L*W) |
At SZKJ, we understand that the cooling process is critical to the overall quality of your products. That is why, our cooling conveyor is designed to seamlessly integrate into any production line without compromising on its reliability. Apart from the robust constructions, it comes with different features including SMEMA compatibility and customizable cooling settings to ensure consistent production flow.
At SZKJ, we have a special emphasis on maintaining the quality of every single product. Our cooling conveyor is a also reflection of that commitment as it goes strict quality control checks under the supervision of qualified Quality Control engineers who make sure that every single component performs as per the specifications. Only 100% of QC-certified products are shipped to our clients.
